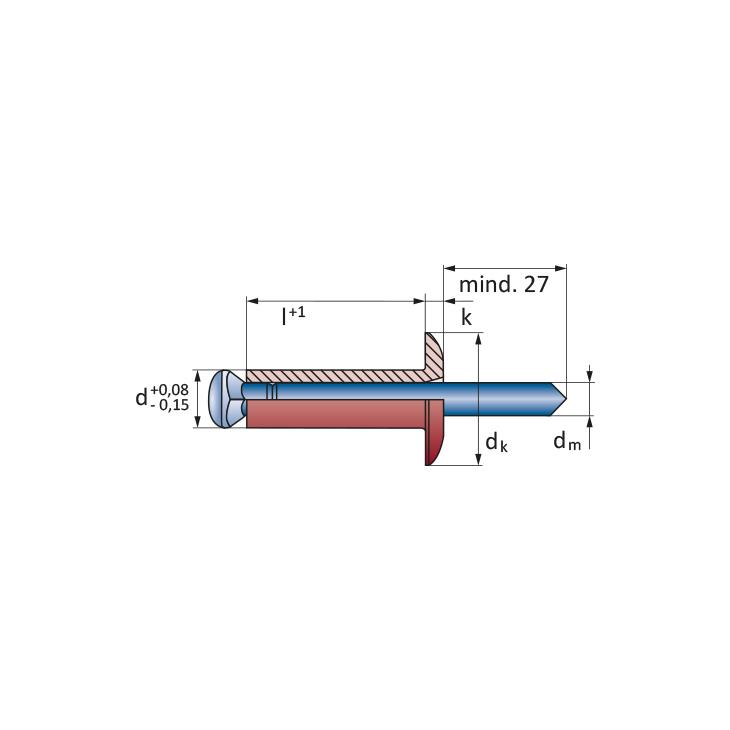

Peel Rivet Dome Head AL-ST

Peel Rivet Dome Head AL-ST

Length mm ( l ):

Grip Range (mm):

10,0 1,5 - 5,0 mm
16,0 4,0 - 11,0 mm
18,0 5,0 - 13,0 mm

Head Diameter (dk):  6,5 mm

Head Height (K):  0,8 mm

Mandrel Diameter (dm):  1,7 mm

Hole Diameter:  3,6 mm

Min. Shear Strength:  850 N

Min. Tensile Strength:  720 N
